Implantation of the Portico With FlexNav TAVI System in a patient with aortic stenosis, severe renal impairment, and diffuse iliac atherosclerosis

Sponsored by Abbott

Portico with FlexNav TAVI system: enhancing innovative technology to optimize patient outcomes and physician experience

A case report by Sinny Delacroix, MD, PhD; Ramesh G. Chokka, MD and Stephen G. Worthley, MBBS, PhD, FRACP

Patient presentation

This case describes a 90-year-old woman with comorbidities that included type 2 diabetes, morbid obesity, hypertension, mixed mitral valve disease, chronic kidney disease, and hyperlipidemia, as well as a history of transient ischemic attack, pacemaker implantation for trifascicular block, breast cancer with right lumpectomy, and bilateral total knee replacement. She presented with worsening shortness of breath over several months and was assessed for transcatheter aortic valve implantation (TAVI) considering the high surgical risk due to her medical history. She lived alone, was independent with her activities of daily living, and was mobile with the use of a four-wheeled walker and an electric wheelchair. She had a Mini-Mental State Examination score of 28/30 and a Society of Thoracic Surgeons score of 7.9%.

Transthoracic echocardiography (TTE) revealed severe aortic stenosis with a left ventricular ejection fraction
(LVEF) of 55%. Mild mitral and tricuspid regurgitation was also noted. Coronary angiography revealed mild-to-moderate disease in the dominant left coronary artery and no disease in the nondominant right coronary artery. A coronary height of 8.7 mm in the diseased left coronary artery added to the complexity of the case. The aortic valve area was 0.8 cm2, with a mean gradient of 36 mm Hg, Vmax of 4 m/s, and a dimensionless performance index of 0.2, which is indicative of severe aortic stenosis.

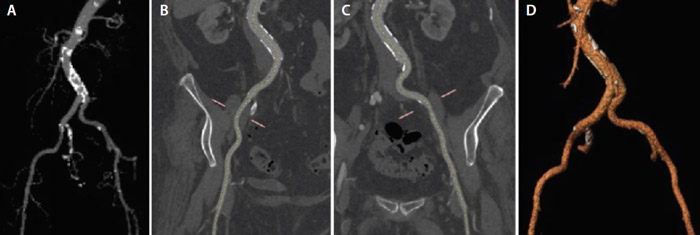

CT assessments using 3mensio software (Pie Medical Imaging) showed an annular area of 543 mm2 and a perimeter of 83.5 mm. The left and right coronary artery heights were 8.7 mm and 20.4 mm, respectively. Vascular access was challenging due to the relatively small femoral diameters of 5.4 mm and 6.1 mm. Diffuse minor atherosclerosis was also noted in the iliac arteries, which were quite tortuous as well (Figure 1).

Procedure description and results

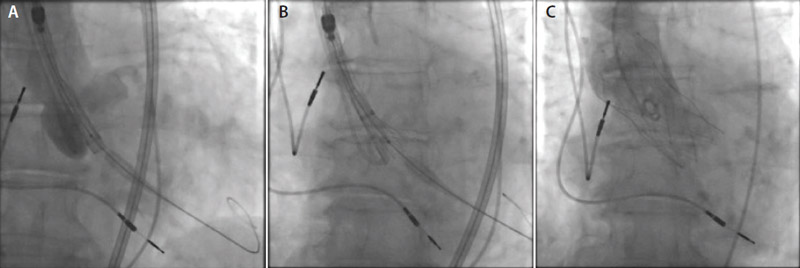

A 29-mm Portico valve (Abbott) was deployed under local anesthesia and conscious sedation using the FlexNav delivery system (Abbott) via a transfemoral access route (Figure 2A and 2B).

Immediately after the procedure, the patient had no residual aortic valve gradient or paravalvular aortic regurgitation on cine aortography and TTE. Access was achieved without complication using 6- and 14-F sheaths in the left and right femoral arteries, respectively, and the access was preclosed with two Perclose ProGlide devices (Abbott). The aortic valve was crossed with a 6-F Amplatzer left 1 guide catheter followed by a 6-F pigtail catheter. Valvuloplasty with a 23-mm Cristal balloon (Balt) was performed under rapid pacing via the existing pacemaker. The 14-F sheath was then removed and the FlexNav delivery system with its 15-F integrated sheath was introduced. This was performed quite easily, despite the tortuous iliac artery anatomy. A 29-mm Portico valve was then deployed without pacing. The frictionless sheath permitted stable delivery of the valve without movement into the ventricle during valve release, and thus we were able to achieve a stable high position with an excellent result (Figure 2C). The final position of the ventricular aspect of the valve frame was 0 mm below the noncoronary cusp and 2 mm below the left coronary cusp. Hemostasis was obtained with the Perclose ProGlide devices.

The postoperative course was uneventful with predischarge TTE showing a well-seated Portico valve and no aortic regurgitation. The patient was discharged 1 day after the procedure on a regimen of aspirin and clopidogrel.

At the 30-day postoperative follow-up, the patient was significantly less short of breath than she was prior to the procedure but remained in New York Heart Association class II. Her TTE findings, from an aortic valve perspective, remained unchanged from discharge with a well-seated valve, no paravalvular leaks, and normal hemodynamics. There were no significant issues after discharge.

At the 6-month follow-up, the patient expressed that although her exertional dyspnea had significantly improved, she continued to experience some shortness of breath with exertion that could be due to her obesity and lack of physical fitness. TTE demonstrated a well-seated Portico valve with trivial paravalvular leak and a normal LVEF of 55%. She had no other complaints. Clopidogrel was ceased, but she continued to take aspirin.

Discussion

Over the last decade, evidence from several clinical trials has propelled the evolution of TAVI in the treat-ment of severe aortic stenosis.^1-7 It is currently the preferred treatment modality for patients with severe symptomatic aortic stenosis, and studies have shown that the procedure is noninferior or even superior to standard therapies in intermediate-risk patients.8,9 More recently, based on the results of the PARTNER 3 trial, the FDA has approved an expanded indication for several transcatheter heart valves to include patients with severe aortic stenosis, even at low surgical risk.⁵

The Portico valve consisting of a self-expanding nitinol frame started its clinical use in 2012 and has gained regulatory approval in Europe for sheathless introduction of the valve, providing physicians with the ability to use the valve in patients with complex anatomies. The large stent cell sizes of the valve with minimal flaring and the valve's intra-annular design provide the added advantages of improved valve positioning and hemodynamic stability. The new FlexNav delivery system provides the added advantage of stable, controlled deployment of the valve, which permits very accurate placement of the valve frame. By permitting safe, accurate deployment, the valve can be more reliably deployed at a target depth of 3 mm, which potentially reduces risk of pacemaker implantation and may also reduce paravalvular leak. The smaller French size (14-F equivalent for the 23/25-mm valves and 15-F equivalent for the 27/29-mm valves) may reduce the vascular complication rate and could potentially treat patients with some compromise of the iliac and femoral arteries that would not be accessible with traditional TAVI delivery systems.
